Home /Products/12mm Rebar/Prestressed Concrete Construction Sinew Spiral Rib PC Wire Serrated Wire Plain PC Steel Wire

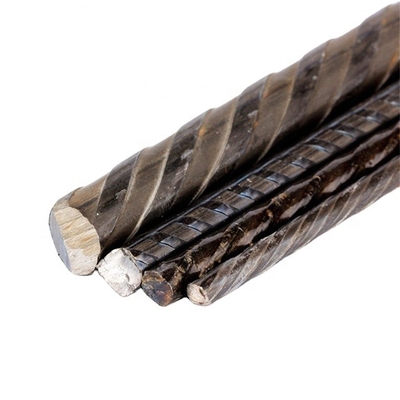

Prestressed Concrete Construction Sinew Spiral Rib PC Wire Serrated Wire Plain PC Steel Wire

10.0 Tons
MOQ
Prestressed Concrete Construction Sinew Spiral Rib PC Wire Serrated Wire Plain PC Steel Wire
Features Gallery Product Description Request A Quote
Features
Specifications
Steel Grade: Steel, SWRH82B SWRH77B
Standard: AiSi
Type: Drawn Wire
Application: Construction
Alloy Or Not: Is Alloy
Special Use: Cold Heading Steel
Model Number: 82B
Grade: Steel, 4.0mm 4.8mm 5.0mm 6.0mm 6.25mm 7.0mm 8.0mm 9.0mm 10.0mm
Delivery Time: Within 7 Days
Product Name: PC Steel Wire
Tensile Strength: 1470-1860Mpa
Surface: Sprial/indented/plain
Basic Infomation
Model Number: 82B
Payment & Shipping Terms
Packaging Details: In Container. Packed in coil.( around 0.8-1.1MT/coil ) Each coil is strapped by steel bands at 8 places, fully wrapped with anti-rust plastic & P.P woven sheet with pallet and strapped again by steel bands at 6 places. Seller is responsible for d
Supply Ability: 8000 Ton/Tons per Month
Product Description

Prestressed Concrete Tendon Spiral Rib PC Wire indented wire plain PC steel wire

Product Description



  Product Name PC Steel Wire
Types of Surface
 plain,spiral,indented
Diameter
 3.8mm 4.0mm 4.8mm 5.0mm 6.0mm 7.0mm 8.0mm 9.0mm 10mm 10.5mm
Coil weight
 2.5 tons-3.5 tons
  Application Construction
  Standard AISI, ASTM, BS, DIN, GB, JIS
  Type Drawn Wire
  Tensile Strength 1470-1860Mpa

Dia.

(dn/mm)

 Tolerance   (mm)

Tensile

Strength  (op0.2/Mpa)     Not less than

 Yield Strength  (op0.2/Mpa)  Not less than

Elongation at  max  load (Lo=200

ogt/%) Not less than

Bending  Times   Not less

than

 Bending  Radius  R/mm Relaxation Properties

The relaxation at

1000h  (Initial load to 70%

of  nominal  tensile  strength)  (r/%)  Not more

 than
4.8 ±0.05

1470

1570

1670

1770

1860

1290

1380

1470

1560

1640

 3.5 4 15 2.0
5.0
6.0 ±0.05

1470

1570

1670

1770

1290

1380

1470

1560
6.25
7.0 20
8.0 ±0.06

1470

1570

1290

1380

 20
9.0 25





Company Information

 Tianrui Steel Co., Ltd is the mother company of Qinhuangdao Jiexuan Metal Material Co.,Ltd. It was founded in 1998, and specialize in producing 1*7 PC and PE coated steel strands, mainly 9.3mm,9.53mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm according to ASTM A416, BS5896, AS4672 and EN10138, PC wire from 4mm to 12mm. We are a professional anufacturer and well known in the area of post-tensioning.

Packaging & Shipping





Why choose us

1. More than 20 years production experience.

2. Export to more than 20 countries.

3. Daily output 200 tons.

4. Quality control: strictly choosing raw material, advanced production line and facility.

5. preciseinspection equipment.

6. Reasonable prices with high quality products.

7. Design and customize products according to customers' special requirements.

8. We will supply support services before sale, on sale and after sale.



Our factory can produce various models according to different standards of products.
(1) Unbonded PC steel strand
ASTM A416, BS5896, AS4672,EN10138...
1x7-9.5mm/12.5mm/12.7mm/12.9mm/15.2mm/15.7mm

(2) Unbonded PC strand

1x7-9.5mm/12.7mm/15.2mm/15.7mm

(3) Galvanized strand

1x7-9.5mm/12.7mm/15.2mm/15.7mm

(4) Prestressed steel wire

Plain steel wire for prestressed concrete/indented wire /spiral rib steel wire
3.0mm/4.0mm/4.8mm/5.0mm/6.0mm/6.25mm/7.0mm/8.0mm/9.0mm/10.0mm/12mm

(5)  Ancillary product for post tension engineering

Anchorage, wedges, rebar cap and so on.
